Lightweight AR Picture Thread (Page 16 of 16)
|
my second AR Build
BAD LW upper/lower FDE Midwest industries 15inch keymod rail criterion 18inch hybrid barrel griffin armarment comp Geissele SD-E Trigger mission first minimalist stock moe grip, sights bcm bcg and charging handle coming in a 6lbs 10oz withouth the red dot and mag
|
|
Originally Posted By breastroker:
Just finished two builds, the 204 Ruger (18" WC) came in at 5.2 pounds and the 556 came in at 3.16 pounds. Complete 556 upper 2.278 pounds or 36.45 ounces, total weight right now is 3.16 pounds. Have to get to 48 ounces to be @ 3 pounds. Think I can get a lighter muzzle brake, a lighter CF handguard and a lighter pistol grip. Maybe a lighter buffer too. Upper: Polymer upper receiver @ 4.10 ounces Titanium brake @ 1.2 oz. Faxon Ultra light weight 556 1:7 twist 16 inch mid length barrel. @ 19.4 ounces Whiskey Arms lite carrier 3.91 ounces Rubber City adjustable carrier key bolt+ titanium firing pin+ cam pin + 2.04 ounces (BCG 5.95 oz.) Cobra Tactical 9 inch Mid 2.4 ounces plus 1.00 oz. Clark Custom bbl. nut = 3.40 oz. with 3 titanium screws 2A 0.625 titanium gas block 0.65 generic charging handle 1.15 oz Lower: Complete lower @ 14.10 ounces New Frontier lower NF polymer down pins Smoker Composites buffer tube/ stock generic spring generic buffer Accu-group trigger (polymer) Mag K @ 1.7 oz V7 Ti grip screw http://i1237.photobucket.com/albums/ff464/brasse/Upper36.45oz_zps5v4aefc9.jpg http://i1237.photobucket.com/albums/ff464/brasse/PolyLowerComplete14.10oz_zpsfzmza8g4.jpg Hey there. Nice gun. You mentioned getting a new comp. I just bought a couple titanium comps, one 308 and one 5.56. They 5.56 comes in around .9 oz. And the thing works. I just found this company a little over a month ago. If I'm not mistaken it was around 59.00 for the raw and raw is fine because I'm going to paint it. Venom Defense. I'll send a pic. It looks brutal as well!!! Keep rocking!!! |
Lightweight build #2 DS arms lw upper receiver, Vorn Lima 2 lightweight lower receiver, BA Hansen 16" .625 barrel, AIM lw bcg, sprinco red spring, standard buffer, SLR Helix ultralight mlok 13.7 rail, gamma brake, elftmann 3g ultralight trigger, back up sights, holosun acss red dot with fortis mount, few titanium and aluminum bits here and there. 5lbs 8oz. |
|
Originally Posted By eodinert:
Public Service Announcement: 7lbs isn't a lightweight gun. That's a standard weight range for an AR. Just as a guideline, under 6 is starting to get light, but really, if you're not under 5, you're just proud of your rifle and want to post pics.
|
No good will come from me fighting your war....-John Carter
God is Great, He just doesn't cater to goat fuckers....
God is Great, He just doesn't cater to goat fuckers....
|
If I remember correct this is right at 5 pounds. It feels like nothing in hand. It has a thin 7.5'' barrel and alum. brake. The SAR3 rail and arm brace is also very light. My pistol grip, TRS-25 and lower parts are also light. I was not really going for the lightest gun but it just ended up being light because of it's size and parts. For a fully accessorized gun it is pretty light.
I could take off the flip sights, AFG, rail covers and sling swivel and be in the 4 point something range but that is pointless.
|
|
Originally Posted By rhaney02:
Thanks for your contribution. Originally Posted By rhaney02:
Originally Posted By eodinert:
Public Service Announcement: 7lbs isn't a lightweight gun. That's a standard weight range for an AR. Just as a guideline, under 6 is starting to get light, but really, if you're not under 5, you're just proud of your rifle and want to post pics. |
|
Does anyone know if Fostech is still going to be selling that 3.5lb AR?
The Mrs. would definitely shoot more if she had a 3.5lb AR. ETA: On topic, I just put this together. 5.8lbs, I am still waiting on a set of Troy micro buis that will absolute co-witness the low-pro RMR. Not digging the feel of the paracord tube wrap, so I have a foam cover coming. Attached File Spikes lwr, magpul furniture, PSA 8.5" .300 upr, 7" M-Lok rail, Spikes lightened NiBr bcg, SSA-E trigger, ADM LH QD RMR mount and RMR. |
Triggers With Attitude
|
I know there are some lightweight ARs out there:
Faxon -- 4 lbs, 15 oz for ~$2000: https://faxonfirearms.com/fx5500-ultralight-ar15/ Wilson Combat -- 6 lbs, 11 oz for ~$2000: https://www.wilsoncombat.com/tactical-lightweight/ But it's possible to get a lightweight AR without breaking the bank. Here are two nearly identical budget builds:
Upper Assembly: Palmetto State Armory (PSA) - Caliber: 5.56x45mm - Barrel: 16", Government/M4 Profile - Gas System: Midlength - Handguard: Magpul MOE M-LOK hand guard, mid-length - Upper Receiver: PSA - Bolt Carrier Group (BCG): PSA - Charging Handle: PSA - Rear Sight: UTG BUIS Lower Assembly: Anderson/PSA - Caliber: Multi - Lower Receiver: Anderson - Lower Parts Kit: PSA - Grip: Resurgent Arms featureless grip - Buffer Tube Assembly: PSA - Stock: Magpul MOE carbine stock Total Weight: 6 pounds, 11.5 ounces
Upper Assembly: Palmetto State Armory (PSA) - Caliber: 5.56x45mm - Barrel: 16", Pencil Profile - Gas System: Midlength - Handguard: PSA standard CAR-15 handguards - Upper Receiver: PSA - Bolt Carrier Group (BCG): PSA - Charging Handle: PSA - Rear Sight: UTG BUIS Lower Assembly: Anderson/PSA - Caliber: Multi - Lower Receiver: Anderson - Lower Parts Kit: PSA - Grip: Resurgent Arms featureless grip - Buffer Tube Assembly: PSA - Stock: Blackhawk Knoxx stock Total Weight: 6 pounds, 1.5 ounces ********** Where did those 10 ounces come from? ~5.5 ounces saved by moving from government/M4-barrel profile to pencil barrel profile:
~2.0 ounces saved by moving from Magpul M-LOK to standard handguards:
~2.5 ounces saved by moving from Magpul carbine stock to Blackhawk Knoxx stock:
(The weight difference was only ~1 ounce at first, but I removed the sling swivel to save more weight.)
Here's the kicker though. Total cost to make these modifications? $0 dollars. If you shop right, pencil barrels can be just as cheap as "regular" government/M4 barrel profiles, M-LOK handguards actually cost more than standard handguards, and the Blackhawk stock comes with budget lower build kits. Obviously, going from seven pounds to six pounds is quite a bit easier than going from six pounds to five pounds -- but I hope I've demonstrated that 1) ounces start to add up and 2) you can cut weight cheaply. |
|
Originally Posted By butlers:
I know there are some lightweight ARs out there: Faxon -- 4 lbs, 15 oz for ~$2000: https://faxonfirearms.com/fx5500-ultralight-ar15/ Wilson Combat -- 6 lbs, 11 oz for ~$2000: https://www.wilsoncombat.com/tactical-lightweight/ But it's possible to get a lightweight AR without breaking the bank. Here are two nearly identical budget builds: https://i.imgur.com/rNRXTXo.jpg Upper Assembly: Palmetto State Armory (PSA) - Caliber: 5.56x45mm - Barrel: 16", Government/M4 Profile - Gas System: Midlength - Handguard: Magpul MOE M-LOK hand guard, mid-length - Upper Receiver: PSA - Bolt Carrier Group (BCG): PSA - Charging Handle: PSA - Rear Sight: UTG BUIS Lower Assembly: Anderson/PSA - Caliber: Multi - Lower Receiver: Anderson - Lower Parts Kit: PSA - Grip: Resurgent Arms featureless grip - Buffer Tube Assembly: PSA - Stock: Magpul MOE carbine stock Total Weight: 6 pounds, 11.5 ounces https://i.imgur.com/VmK6QQY.jpg Upper Assembly: Palmetto State Armory (PSA) - Caliber: 5.56x45mm - Barrel: 16", Pencil Profile - Gas System: Midlength - Handguard: PSA standard CAR-15 handguards - Upper Receiver: PSA - Bolt Carrier Group (BCG): PSA - Charging Handle: PSA - Rear Sight: UTG BUIS Lower Assembly: Anderson/PSA - Caliber: Multi - Lower Receiver: Anderson - Lower Parts Kit: PSA - Grip: Resurgent Arms featureless grip - Buffer Tube Assembly: PSA - Stock: Blackhawk Knoxx stock Total Weight: 6 pounds, 1.5 ounces ********** Where did those 10 ounces come from? ~5.5 ounces saved by moving from government/M4-barrel profile to pencil barrel profile: https://i.imgur.com/z7yamoH.jpg https://i.imgur.com/IV37Q0X.jpg ~2.0 ounces saved by moving from Magpul M-LOK to standard handguards: https://i.imgur.com/yEMBaBt.jpg https://i.imgur.com/bsfnvwG.jpg ~2.5 ounces saved by moving from Magpul carbine stock to Blackhawk Knoxx stock: https://i.imgur.com/9GjIRAO.jpg https://i.imgur.com/fkQ0eXK.jpg (The weight difference was only ~1 ounce at first, but I removed the sling swivel to save more weight.) https://i.imgur.com/mdG8QJ5.jpg Here's the kicker though. Total cost to make these modifications? $0 dollars. If you shop right, pencil barrels can be just as cheap as "regular" government/M4 barrel profiles, M-LOK handguards actually cost more than standard handguards, and the Blackhawk stock comes with budget lower build kits. Obviously, going from seven pounds to six pounds is quite a bit easier than going from six pounds to five pounds -- but I hope I've demonstrated that 1) ounces start to add up and 2) you can cut weight cheaply. lost and under 6 pounds total. |
Too much excuse. Not enough work.
|

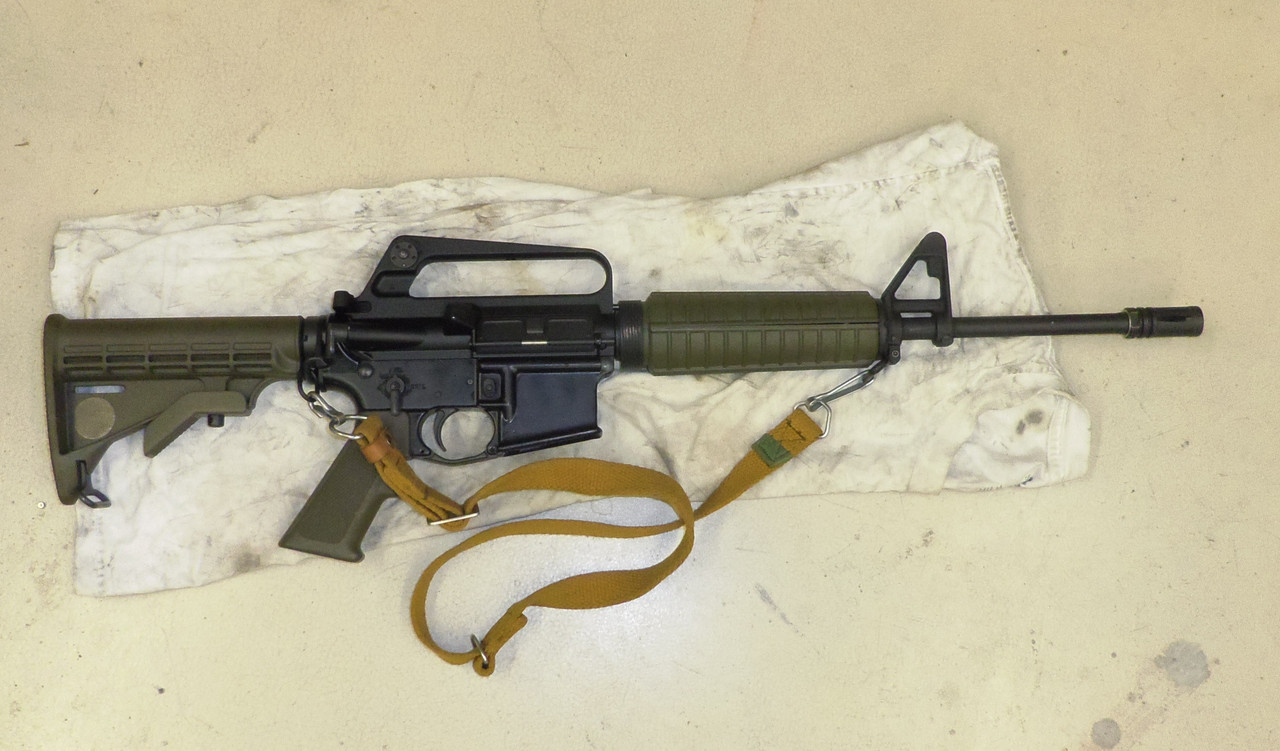

7 lbs. 3.5 oz. as shown with unloaded PMag.
Attached File |
No good will come from me fighting your war....-John Carter
|
Anyone know if the LWRC ultra compact setup will be lighter then a PWS enhanced buffer tube (4.3oz) and Magpul SL-k (7.9oz)? I also have a 2A adj bcg so I could lighten the buffer more then a standard carbine buffer with no weights, etc...
I'll post pic's of my rebel LW build as soon as I get home. |
|
Originally Posted By andrewz71:
Anyone know if the LWRC ultra compact setup will be lighter then a PWS enhanced buffer tube (4.3oz) and Magpul SL-k (7.9oz)? I also have a 2A adj bcg so I could lighten the buffer more then a standard carbine buffer with no weights, etc... I'll post pic's of my rebel LW build as soon as I get home. Buffer is inside the tube with flatwire spring over buffer (as shipped in the bag). Attached File UC2 buffer is 3.1 oz Attached File The buttstock alone is 7.45 oz Attached File Hope that helps. |
NRA/GOA/SAF/WVSRPA/VFW Lifer
WVCDL member and Dyna Soar Turret Gunner
WVCDL member and Dyna Soar Turret Gunner
|
Originally Posted By Variable556:
The UCIW stock is pretty beefy. The buffer adds a bunch with the tungsten, but the buttstock itself is beefy as well. Buffer is inside the tube with flatwire spring over buffer (as shipped in the bag). https://www.AR15.Com/media/mediaFiles/53338/6421AF10-F2B2-4D67-9940-7E0AC24C491E_jpeg-894618.JPG UC2 buffer is 3.1 oz https://www.AR15.Com/media/mediaFiles/53338/1CA47521-8410-4508-821C-066CE07F5012_jpeg-894621.JPG The buttstock alone is 7.45 oz https://www.AR15.Com/media/mediaFiles/53338/299FA1A5-A2AF-4EAF-AF19-F3C6B00DDF06_jpeg-894623.JPG Hope that helps. Originally Posted By Variable556:
Originally Posted By andrewz71:
Anyone know if the LWRC ultra compact setup will be lighter then a PWS enhanced buffer tube (4.3oz) and Magpul SL-k (7.9oz)? I also have a 2A adj bcg so I could lighten the buffer more then a standard carbine buffer with no weights, etc... I'll post pic's of my rebel LW build as soon as I get home. Buffer is inside the tube with flatwire spring over buffer (as shipped in the bag). https://www.AR15.Com/media/mediaFiles/53338/6421AF10-F2B2-4D67-9940-7E0AC24C491E_jpeg-894618.JPG UC2 buffer is 3.1 oz https://www.AR15.Com/media/mediaFiles/53338/1CA47521-8410-4508-821C-066CE07F5012_jpeg-894621.JPG The buttstock alone is 7.45 oz https://www.AR15.Com/media/mediaFiles/53338/299FA1A5-A2AF-4EAF-AF19-F3C6B00DDF06_jpeg-894623.JPG Hope that helps. |
|
I didn't really intend on this being "lightweight" per se. It's a 12" (BHW) 450B pistol. It qualifies for deer season where I'm from because of the straight walled case.
With 10rd of 225g Hornady loaded it is <7lb. Got the SiCo brake because it's a good brake. Might get the can later if I'm feeling cute, IDK.
|
|
Originally Posted By butlers:
I know there are some lightweight ARs out there: Faxon -- 4 lbs, 15 oz for ~$2000: https://faxonfirearms.com/fx5500-ultralight-ar15/ Wilson Combat -- 6 lbs, 11 oz for ~$2000: https://www.wilsoncombat.com/tactical-lightweight/ But it's possible to get a lightweight AR without breaking the bank. Here are two nearly identical budget builds: https://i.imgur.com/rNRXTXo.jpg Upper Assembly: Palmetto State Armory (PSA) - Caliber: 5.56x45mm - Barrel: 16", Government/M4 Profile - Gas System: Midlength - Handguard: Magpul MOE M-LOK hand guard, mid-length - Upper Receiver: PSA - Bolt Carrier Group (BCG): PSA - Charging Handle: PSA - Rear Sight: UTG BUIS Lower Assembly: Anderson/PSA - Caliber: Multi - Lower Receiver: Anderson - Lower Parts Kit: PSA - Grip: Resurgent Arms featureless grip - Buffer Tube Assembly: PSA - Stock: Magpul MOE carbine stock Total Weight: 6 pounds, 11.5 ounces https://i.imgur.com/VmK6QQY.jpg Upper Assembly: Palmetto State Armory (PSA) - Caliber: 5.56x45mm - Barrel: 16", Pencil Profile - Gas System: Midlength - Handguard: PSA standard CAR-15 handguards - Upper Receiver: PSA - Bolt Carrier Group (BCG): PSA - Charging Handle: PSA - Rear Sight: UTG BUIS Lower Assembly: Anderson/PSA - Caliber: Multi - Lower Receiver: Anderson - Lower Parts Kit: PSA - Grip: Resurgent Arms featureless grip - Buffer Tube Assembly: PSA - Stock: Blackhawk Knoxx stock Total Weight: 6 pounds, 1.5 ounces ********** Where did those 10 ounces come from? ~5.5 ounces saved by moving from government/M4-barrel profile to pencil barrel profile: https://i.imgur.com/z7yamoH.jpg https://i.imgur.com/IV37Q0X.jpg ~2.0 ounces saved by moving from Magpul M-LOK to standard handguards: https://i.imgur.com/yEMBaBt.jpg https://i.imgur.com/bsfnvwG.jpg ~2.5 ounces saved by moving from Magpul carbine stock to Blackhawk Knoxx stock: https://i.imgur.com/9GjIRAO.jpg https://i.imgur.com/fkQ0eXK.jpg (The weight difference was only ~1 ounce at first, but I removed the sling swivel to save more weight.) https://i.imgur.com/mdG8QJ5.jpg Here's the kicker though. Total cost to make these modifications? $0 dollars. If you shop right, pencil barrels can be just as cheap as "regular" government/M4 barrel profiles, M-LOK handguards actually cost more than standard handguards, and the Blackhawk stock comes with budget lower build kits. Obviously, going from seven pounds to six pounds is quite a bit easier than going from six pounds to five pounds -- but I hope I've demonstrated that 1) ounces start to add up and 2) you can cut weight cheaply. AR-15 The lightest budget AR-15 I could build without going crazy (e.g. carbon fiber). Upper: Ballistics Advantage barreled upper receiver (16" pencil barrel without muzzle device, carbine-length gas system) with Ballistics Advantage BCG/CH Lower: Aero Precision stripped lower receiver + Palmetto State Armory/Magpul lower build kit + featureless parts (yes, I'm in California)
Total Weight: 5.6 pounds Length of Pull: 12.5" Mini-14 The lightest wood stock, optics-ready Mini-14 I could put together. Barrel: 16" NRA edition Stock: old-school wood stock, see here for more details. https://www.perfectunion.com/vb/ruger-mini-14-mini-30/180586-stock-weights.html#post1538284  Total Weight: 6.6 pounds Length of Pull: 12.5" |
|
I'm not sure if this counts, but I have my POF Rogue small frame 308 16.5" AR (heavily modified) at 6lbs w/ irons w/o mag and w/ scope w/o mag coming in at 7.5 lbs. I've also modified Superlative Arms piston kit to work with this setup. It's certainly lighter than my 16" PWS MK116 mod 2 lightweight. I think I can shave off about 1 oz after I receiver my new titanium muzzle brake.
|
|
Originally Posted By ahrion: I'm not sure if this counts, but I have my POF Rogue small frame 308 16.5" AR (heavily modified) at 6lbs w/ irons w/o mag and w/ scope w/o mag coming in at 7.5 lbs. I've also modified Superlative Arms piston kit to work with this setup. It's certainly lighter than my 16" PWS MK116 mod 2 lightweight. I think I can shave off about 1 oz after I receiver my new titanium muzzle brake. https://i.ibb.co/g3pjfVY/IMG-20200911-225208-01.jpg Heck yeah it counts. Nice. |
|
Originally Posted By ahrion: I'm not sure if this counts, but I have my POF Rogue small frame 308 16.5" AR (heavily modified) at 6lbs w/ irons w/o mag and w/ scope w/o mag coming in at 7.5 lbs. I've also modified Superlative Arms piston kit to work with this setup. It's certainly lighter than my 16" PWS MK116 mod 2 lightweight. I think I can shave off about 1 oz after I receiver my new titanium muzzle brake. https://i.ibb.co/g3pjfVY/IMG-20200911-225208-01.jpg Definetly counts, especially for a .308. Nice job. |
No good will come from me fighting your war....-John Carter
|
Attached File Just a smidge over 5 lbs with optic. I think I am going to swap out the slick side upper for a standard one. The slick side is much thicker and is slightly heavier. |
I tried that whole cancer thing. It wasn't for me. Good Riddance.
|
Did not weigh. Sorry.  Pretty light though.
|
Originally Posted By FLAL1A:
"Pretty much the only thing that keeps me paying my taxes and not turning my house into a chickenshit particle board and stucco compound is the fact that the police occasionally kill douchebag criminals in comical ways.
"Pretty much the only thing that keeps me paying my taxes and not turning my house into a chickenshit particle board and stucco compound is the fact that the police occasionally kill douchebag criminals in comical ways.
|
Sir Bumpsalot! 7-pounds-even:   Just finished this build. I like to think of it as the “AR15-A5.” Materials list: Aero slick upper. Larue LAT handguard. Magpul Mlok rail covers. Surefire M300 on SF mount. BFG sling. Criterion chrome-lined 16” pencil barrel with FSB pinned by RAW. A2 FH. Daniel Defense fixed rear sight. Microbest chrome BCG. Aimpoint Duty RDS on Scalarworks mount. JP Enterprises silent captured spring. Radian charging handle. KP15 lower with Larue MBT trigger. Might eventually add a magnifier. Weight without mag (but otherwise exactly as pictured) is 7 pounds even. For comparison, my Colt 6720 with factory furniture, but with the same sling, light, and optic is 6 pounds, 15 ounces. Basically the KP15+slick upper weight savings allowed me to trade up to a stout free-float HG for a 1oz weight penalty. And the Larue is not even the lightest available, but at the time it was by far the cheapest at $90. The weight would probably be in favor of this build over the 6720 if I used a standard spring&buffer, as the JPSCS adds a couple of ounces net. I’m very happy with it so far. Need to go shooting next week! |
Joined:
Mar 2022
Posts:
1887
EE: 99% (90)
PA, USA
|
Just finished redoing my SBR with the goal of lightweight without spending stupid money. Anderson lower BAD mag catch relase, bolt catch, safety selector, enhanced pivot pins Andro Corp carbon buffer tube Smoke Composites titanium castle nut & carbon end plate JAG Composites 10.5" carbon HG Faxon 12.5" mid-length gunner barrel Griffin Titanium FH Breek Arms Sledgehammer CH Aero slick side (No FA) upper receiver Geissele Super 42 Spring Carbine buffer Odin Works extended mag release B5 Type 23 grip LaRue MBT-2S Trigger MFT stock Magpul Type 2 rail covers Slate hand stop Faxon low profile gas block BRT gas tube First pic is without optic & suppressor (PA 3x micro prism & ADM mount) Second is with optic Third is with both optic & suppressor (YHM Turbo T3 can)
|
Joined:
May 2023
Posts:
605
EE: 0% (0)
WI, USA
 Wasn't aiming for a lightweight build.... it was more cheap build, but this weighed in at 6 lbs 9.4 oz with a 20" BBL, and that seemed fairly light weight. Faxon gunner BBL, milspec crush washer and A2 flash hider. Precision Reflex gas block. Troy front sight. Precision Reflex gas block. Midwest Industries M-LOK 2-Part drop-in handguard. Vism vertical m-lok foregrip. Aero No-FA Upper (mod f/carrier ch handle). Davidson Defense side charging carrier. Trybe NiB bolt assembly. NCStar slimline rear sight. Griffin pistol grip. Griffin 2 stage adjustable trigger. WMD NiBx buffer tube. Flatwire spring & carbine buffer. Vism stock. Mil-sec Rguns lower, mag catch, safety, bolt catch. Ambi loop endplate. |
