ULTRA light weight picture thread....the under 6 crowd. (Page 8 of 39)
|
Looks pretty! Doesn't look under 6 lbs though. Page 15 says you posted in the wrong thread.
|
The zombies are coming...
|
industry partnership and fancy pics dont void the rules of the game, no way that is under 6lbs |
|
Originally Posted By cj3waker:
industry partnership and fancy pics dont void the rules of the game, no way that is under 6lbs Originally Posted By cj3waker:
industry partnership and fancy pics dont void the rules of the game, no way that is under 6lbs LoL |
www.slrrifleworks.com
(855) 757-7435
(855) 757-7435
|
Originally Posted By SLRrifleworks:
LoL Originally Posted By SLRrifleworks:
Originally Posted By cj3waker:
industry partnership and fancy pics dont void the rules of the game, no way that is under 6lbs LoL No seriously. This thread is specifically for ultra-lightweight rifles that weigh under 6 lbs. Unless you have a Spikes Titanium Bolt Carrier in there, I am 98% sure you are not under 6 lbs. Looks pretty though. |
The zombies are coming...

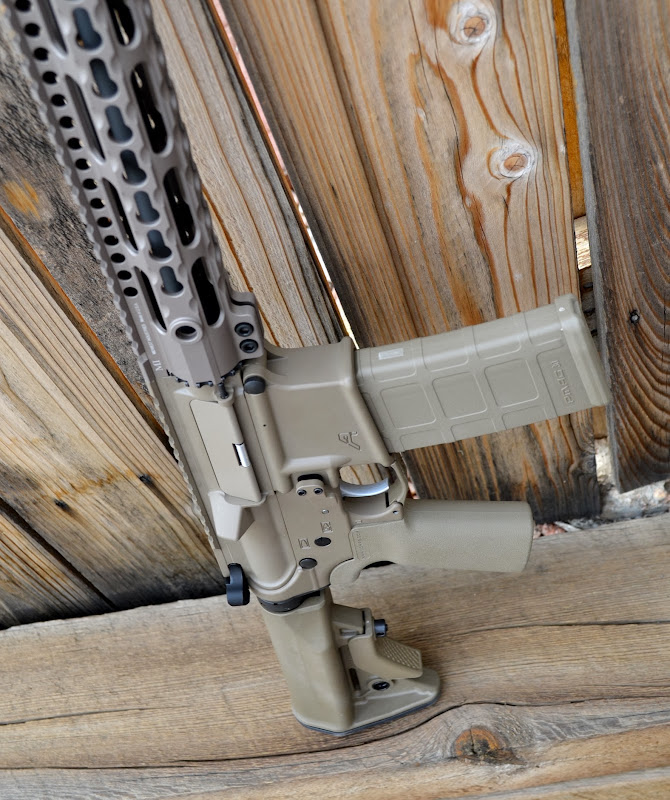

5 lbs, 13.2 oz without sites, so barely qualifies. Going to order Magpul BUIS when I have $100, so that should be a hair under 6 lbs.
I think I am going to swap in a Seekins FDE magazine release if I can ever find one. Upper: DD 14.5" Gov't mid barrel AAC Brakeout 51t comp BCM Gas Block Midwest Industries 12.4" SSK Rail Aero Precision Cerakote Forged Upper Umbrella Corp Full-auto BCG BCM Gunfigher Mod4 Charging Handle v7 systems FDE port door, steel rod Lower: Aero Precision forged FDE cerakote lower Magpul MOE FDE trigger guard Damage Industries 7075 Stock Hardware Kit White Oak Armament LPK ALG Defense ACT trigger Umbrella Corp Grip 23 LWRC Compact stock, FDE V7 Systems 57 degree Hybrid Safety Selector Odin Works XMR (extended mag release) |
[url]http://www.ar15.com/forums/t_3_118/638524_Lightweight_Parts_List_with_WEIGHTS__AR_15_.html[/url]
|
Originally Posted By djkest: 5 lbs, 13.2 oz without sites, so barely qualifies. Going to order Magpul BUIS when I have $100, so that should be a hair under 6 lbs. https://lh6.googleusercontent.com/-5qUBTPDgXw8/UxkCVinWqQI/AAAAAAAAQvM/fMhipM8-vMQ/s800/DSC_1238.JPG https://lh5.googleusercontent.com/-lBaTgn97XPE/UxkD7fJSzRI/AAAAAAAAQxE/leIeigmG-9A/s800/DSC_1256.JPG https://lh4.googleusercontent.com/-IVtZdapZ3ns/UxkDZVpxd8I/AAAAAAAAQws/16sHyZBl508/s800/DSC_1253.JPG https://lh5.googleusercontent.com/-thJRzh0wcqM/UxkC6awuJtI/AAAAAAAAQwE/WsX0DkwxPdk/s800/DSC_1248.JPG https://lh4.googleusercontent.com/-BWQhLsD7EmQ/UxkC1grwAVI/AAAAAAAAQv0/mSTnCKHfQJc/s800/DSC_1245.JPG I think I am going to swap in a Seekins FDE magazine release if I can ever find one. Upper: DD 14.5" Gov't mid barrel AAC Brakeout 51t comp BCM Gas Block Midwest Industries 12.4" SSK Rail Aero Precision Cerakote Forged Upper Umbrella Corp Full-auto BCG BCM Gunfigher Mod4 Charging Handle v7 systems FDE port door, steel rod Lower: Aero Precision forged FDE cerakote lower Magpul MOE FDE trigger guard Damage Industries 7075 Stock Hardware Kit White Oak Armament LPK ALG Defense ACT trigger Umbrella Corp Grip 23 LWRC Compact stock, FDE V7 Systems 57 degree Hybrid Safety Selector Odin Works XMR (extended mag release) |
|
Originally Posted By Elsinore13:
Not one of those big thick beefy sumbeeches I ended up with I hope.... I had been wanting to build a lightweight lefty upper and snagged a DPMS lefty upper, no F/A, brass deflector or dust cover. Damn thing is 1/4 inch thick and weighs 10 ounces. Will make me a great match rifle upper but lightweight, not so much. Originally Posted By Elsinore13:
Originally Posted By trog57:
I recently purchased a forged upper found on Anderson's website. No FA and no provisions for a dust cover. I had been looking for just such a configuration for awhile. No weight, sorry. Not one of those big thick beefy sumbeeches I ended up with I hope.... I had been wanting to build a lightweight lefty upper and snagged a DPMS lefty upper, no F/A, brass deflector or dust cover. Damn thing is 1/4 inch thick and weighs 10 ounces. Will make me a great match rifle upper but lightweight, not so much. No, it is forged, not extruded. No actual weight, but does weigh slightly less than a regular forged upper. |
|
BCM Forward Assist: 20.18g
BCM Forward Assist Spring: 1.65g Northtech Titanium Forward Assist: 14.24g Northtech Titanium Forward Assist Spring: 1.42g V7 Weapon Systems Forward Assist: 9.02g V7 Weapon Systems Forward Assist Spring: 1.58g So moving from the BCM to the V7 saved me 0.4 ounces. As far as lightened small parts go, that's a pretty big savings. |
...believe in me, I'm with the High Command.
Joined:
May 2006
Posts:
5776
EE: 100% (35)
MO, USA
|
Originally Posted By StrangerDanger:
BCM Forward Assist: 20.18g BCM Forward Assist Spring: 1.65g Northtech Titanium Forward Assist: 14.24g Northtech Titanium Forward Assist Spring: 1.42g V7 Weapon Systems Forward Assist: 9.02g V7 Weapon Systems Forward Assist Spring: 1.58g So moving from the BCM to the V7 saved me 0.4 ounces. As far as lightened small parts go, that's a pretty big savings. On small parts, thats a HUGE savings on weight. Better yet would be NO Forward Assist
|
"When trading bullets it is better to give than to receive"
"Take your money and a traveler's bag. And if you don't have a sword, sell your clothes and buy one!" Jesus Christ - Luke 22.36
NRA Endowment Member
"Take your money and a traveler's bag. And if you don't have a sword, sell your clothes and buy one!" Jesus Christ - Luke 22.36
NRA Endowment Member
|
Finished my lightweight build today.
Upper 2lbs 6.7oz no charging handle or BCG BCM 16" ELW barrel BCM mod 4 charging handle BCM 13" KMR Rainier arms mini comp Mag tactical upper V7 port door, rod, gas block and forward assist RCA lightweight BCG
Lower 1lb 11.8oz Mag tactical lower Magpul K2 grip Damage industries buffer tube, buffer and spring MFT stock ALG QMS trigger Standard bolt catch V7 safety, mag catch/release, takedown pins, endplate, castle nut
5lbs 1.7oz with Primary arms MD06 and Fortis mount
|
|
Originally Posted By Wmcray:
Finished my lightweight build today. Upper 2lbs 6.7oz no charging handle or BCG BCM 16" ELW barrel BCM mod 4 charging handle BCM 13" KMR Rainier arms mini comp Mag tactical upper V7 port door, rod, gas block and forward assist RCA lightweight BCG http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0203.jpg Lower 1lb 11.8oz Mag tactical lower Magpul K2 grip Damage industries buffer tube, buffer and spring MFT stock ALG QMS trigger Standard bolt catch V7 safety, mag catch/release, takedown pins, endplate, castle nut http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0205.jpg 5lbs 1.7oz with Primary arms MD06 and Fortis mount http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0206.jpg http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0209.jpg Very nice, looks like you did your homework on that build! Did you weigh that barrel or BCG before you put them in your build? |
[url]http://www.ar15.com/forums/t_3_118/638524_Lightweight_Parts_List_with_WEIGHTS__AR_15_.html[/url]
|
Originally Posted By Wmcray:
Finished my lightweight build today. Upper 2lbs 6.7oz no charging handle or BCG BCM 16" ELW barrel BCM mod 4 charging handle BCM 13" KMR Rainier arms mini comp Mag tactical upper V7 port door, rod, gas block and forward assist RCA lightweight BCG http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0203.jpg Lower 1lb 11.8oz Mag tactical lower Magpul K2 grip Damage industries buffer tube, buffer and spring MFT stock ALG QMS trigger Standard bolt catch V7 safety, mag catch/release, takedown pins, endplate, castle nut http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0205.jpg 5lbs 1.7oz with Primary arms MD06 and Fortis mount http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0206.jpg http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0209.jpg Awesome lightweight build there. If you pick up a spikes titanium bolt carrier when they get released you could nudge that thing just under 5 pounds. |
These Spikes Tactical sights are awesome. Glad I went this route rather than the usual KAC or Troys.
Size comparison between the Spikes Tactical set, KAC, Troys and Dueck Defense offset sights. Weight profiles: Spikes Tactical Front: 24.91g Spikes Tactical Rear: 28.56g KAC Front: 37.54g KAC Rear: 50.50g Troy's HK Front: 41.94g Troy's Dioptic Rear: 48.15g Dueck Defense Front: 44.14g Dueck Defense Rear: 85.05g
|
|
Originally Posted By Wmcray:
Finished my lightweight build today. Upper 2lbs 6.7oz no charging handle or BCG BCM 16" ELW barrel BCM mod 4 charging handle BCM 13" KMR Rainier arms mini comp Mag tactical upper V7 port door, rod, gas block and forward assist RCA lightweight BCG http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0203.jpg Lower 1lb 11.8oz Mag tactical lower Magpul K2 grip Damage industries buffer tube, buffer and spring MFT stock ALG QMS trigger Standard bolt catch V7 safety, mag catch/release, takedown pins, endplate, castle nut http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0205.jpg 5lbs 1.7oz with Primary arms MD06 and Fortis mount http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0206.jpg http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0209.jpg i'm impressed, pretty much exactly how i want to build mine up |
|
Originally Posted By djkest:
Very nice, looks like you did your homework on that build! Did you weigh that barrel or BCG before you put them in your build? Originally Posted By djkest:
Originally Posted By Wmcray:
Finished my lightweight build today. Upper 2lbs 6.7oz no charging handle or BCG BCM 16" ELW barrel BCM mod 4 charging handle BCM 13" KMR Rainier arms mini comp Mag tactical upper V7 port door, rod, gas block and forward assist RCA lightweight BCG http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0203.jpg Lower 1lb 11.8oz Mag tactical lower Magpul K2 grip Damage industries buffer tube, buffer and spring MFT stock ALG QMS trigger Standard bolt catch V7 safety, mag catch/release, takedown pins, endplate, castle nut http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0205.jpg 5lbs 1.7oz with Primary arms MD06 and Fortis mount http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0206.jpg http://i1217.photobucket.com/albums/dd382/mhinvest70/SAM_0209.jpg Very nice, looks like you did your homework on that build! Did you weigh that barrel or BCG before you put them in your build?
|
|
Originally Posted By PursuitSS:
On small parts, thats a HUGE savings on weight. Better yet would be NO Forward Assist Completely agree. I'd have magnesium upper without the forward assist if they offered one. I considered just getting the plug, but figured I'd give some of the lightweight options a try. I wanted to avoid a chopped non functional look. I finally got my Aimpoint T1 on an Absolute Co-witness mount from LaRue. I ended up trying the VFZ type for additional weight savings. The entire optic with batteries and mount is 5.35 ounces. |
|
Originally Posted By 9divdoc: http://i282.photobucket.com/albums/kk253/9DivDoc/1_zpsa1353d23.jpg http://i282.photobucket.com/albums/kk253/9DivDoc/1_zps5468cdd3.jpg http://i282.photobucket.com/albums/kk253/9DivDoc/2_zpsfbc790cb.jpg With 6 full length NSR keymod panels & NSR sling swivel socket.... |
|
Originally Posted By jukeboxx13:
I wish I had a scale like that. Originally Posted By jukeboxx13:
Originally Posted By 9divdoc:
http://i282.photobucket.com/albums/kk253/9DivDoc/1_zpsa1353d23.jpg http://i282.photobucket.com/albums/kk253/9DivDoc/1_zps5468cdd3.jpg http://i282.photobucket.com/albums/kk253/9DivDoc/2_zpsfbc790cb.jpg With 6 full length NSR keymod panels & NSR sling swivel socket.... Thanks she's a nice little gun....14.5 BCM ELW-F & KMR-13 gave my old LMT "Defender" new life....
|
Without God,America Doesn't Have A Prayer.
|
Originally Posted By cole_bie:
17oz? Where is this? I don't see it on their site. Originally Posted By cole_bie:
Originally Posted By Parley:
Spike's sites will be going on my light weight gun, along with their 17 ounce CHF barrel I am waiting on. I hope the entire rifle will go under 5 pounds. 17oz? Where is this? I don't see it on their site. It's their 11.5" at 17.5ozChf barrel |
|
Hopefully wrapping up the upper for this one up this evening. Mag Tactical lower, Mission First stock and grip(with trap door removed), V7 buffer tube, castle nut and plate, Ti take down pins(have aluminum ones also), ambi safety, mag release and Taccom buffer, Hated pinning in that standard bolt catch....lol. Rock River two stage trigger in for the moment.
Trigger suggestions???? Obviously want something light, but also wanting a really good single stage trigger for it.
|
|
Originally Posted By fblainen11:
How do you like the MFT grip? I've heard the fit wasn't very good but have never seen one. Just had to trim the small tab off the front of it for the Mag Tactical lower receiver and it fits great. Stock fits well also. No lockdown mechanism like some of the Magpul stocks but not sloppy loose like so many others. |
|
Originally Posted By Elsinore13:
Just had to trim the small tab off the front of it for the Mag Tactical lower receiver and it fits great. Stock fits well also. No lockdown mechanism like some of the Magpul stocks but not sloppy loose like so many others. Originally Posted By Elsinore13:
Originally Posted By fblainen11:
How do you like the MFT grip? I've heard the fit wasn't very good but have never seen one. Just had to trim the small tab off the front of it for the Mag Tactical lower receiver and it fits great. Stock fits well also. No lockdown mechanism like some of the Magpul stocks but not sloppy loose like so many others. Yep, I like the stock as well. My fathers has the CTR and the MFT stock fits better even with the lock on the CTR. Mine is just above yours. |
|
Originally Posted By RustedAce:
http://i57.tinypic.com/2qn9maa.jpghttp://i62.tinypic.com/erzk8m.jpg http://i57.tinypic.com/dwqfs9.jpg Think I am done, I know everyone says that and continues, but I am happy with this right where it is.
Do you even spec, bro? Length of barrel? Brand of barrel? Length of rail? ETA: FOUND THE INFO!
|
Member of Team Ranstad
All together now, minor tweaking to follow. Details for the lower a few posts up above. Mag Tactical upper receiver, V7 aluminum forward assist, Young superlight BCG, V7 port door and pin, Midwest 10.5 ssk, Daniel Defense lightweight profile 14.5 barrel, micro adjustable gas block, V7 gas tube, Voodoo manimal pinned flash hider. Trijicon RMR on an American Defense mount. 5 pounds and 1 ounce with optic and empty 20 round aluminum mag.
|
|
Originally Posted By Elsinore13:
All together now, minor tweaking to follow. Details for the lower a few posts up above. Mag Tactical upper receiver, V7 aluminum forward assist, Young superlight BCG, V7 port door and pin, Midwest 10.5 ssk, Daniel Defense lightweight profile 14.5 barrel, micro adjustable gas block, V7 gas tube, Voodoo manimal pinned flash hider. Trijicon RMR on an American Defense mount. 5 pounds and 1 ounce with optic and empty 20 round aluminum mag. http://i609.photobucket.com/albums/tt171/duc-man97/IMG_20140321_230218_858_zpsf179359c.jpg http://i609.photobucket.com/albums/tt171/duc-man97/IMG_20140321_230709_984_zps2bbb73b2.jpg http://i609.photobucket.com/albums/tt171/duc-man97/IMG_20140321_230614_396_zpsb2778e49.jpg Very nice.
|
|
Originally Posted By Elsinore13:
All together now, minor tweaking to follow. Details for the lower a few posts up above. Mag Tactical upper receiver, V7 aluminum forward assist, Young superlight BCG, V7 port door and pin, Midwest 10.5 ssk, Daniel Defense lightweight profile 14.5 barrel, micro adjustable gas block, V7 gas tube, Voodoo manimal pinned flash hider. Trijicon RMR on an American Defense mount. 5 pounds and 1 ounce with optic and empty 20 round aluminum mag. http://i609.photobucket.com/albums/tt171/duc-man97/IMG_20140321_230218_858_zpsf179359c.jpg http://i609.photobucket.com/albums/tt171/duc-man97/IMG_20140321_230709_984_zps2bbb73b2.jpg http://i609.photobucket.com/albums/tt171/duc-man97/IMG_20140321_230614_396_zpsb2778e49.jpg Nice work. When all else fails, grab the fish scale
Pic thread:
|
|
Never mind the rifle - that table is sick dude! Where did you get it or did you make it yourself? |
One day I am going to finish this build I am still trying to decide what way to go with it and might do a 2nd similar build. Specs so far: (going to change some stuff) Magtac upper/lower SSAE Moe grip/stock and ASAP plate (might go with v7 a lot lighter 1.3oz vs .2oz ) also might change stock Standard LPK SCT titiniam BCG bcm mod4 charging Spikes 14.5 lw mid length barrel Geissele 13" rail (might change) Pig of a gas block on scale (2.6oz) will be going with a ltw one maybe a v7 (.74oz) RRA brake on scale (3oz) might go with saker (3.5oz) or lighter Vdi manimal 1.5oz Primary arms red dot with riser 6.4oz might change but not likely Adding magpul BUIS just goes over 6lbs Edit ok decided I am going to make some major changes and do a 2nd build that might just go over 6lbs With the changes and adding BUIS and a BAD lever should put me at 5lb 8oz |
|
Mega Billet Upper and lower
BCM 16" ELW barrel BCM mod 4 charging handle BCM 13" KMR Rainier arms mini comp V7 port door, rod, gas block and forward assist RCA lightweight BCG Magpul K2 grip Damage industries buffer tube, buffer and spring MFT stock SSA trigger V7 safety, mag catch/release, takedown pins, endplate, castle nut
|
|
I don't know how you guys do it. I'm working on a KISS IDF clone and today I finally got it fully functional. I figured I would try out for the JV team over here while I was at it. With empty magazine: 5 lb 15 oz Without magazine: 5 lb 10.9 oz This thing has a lightweight barrel and skinny plastic handguards and is still pushing 6 lbs. I just don't see how some of the people who post in this thread are truly under 6 lbs. I guess a flattop a upper, lighter grip, cutting the barrel to 14.5" and running a carbine buffer would knock a little off but it wouldn't get it anywhere close to 5 lbs.   |
|
Originally Posted By Alaska511: Don't let it get to you, P Looks good, man! What's that "V" company called again?
|
|
Originally Posted By PFran42:
Funny thing is, I'm not even going for a LW. I'll be damned if this thread pulls me in. I can see it now, late nights in the basement trying to mix toilet paper and carbon fiber into resin molds. Nope... Not gonna go for a LW. No way. Isn't gonna happen. Not even remotely interesting. What's that "V" company called again? Originally Posted By PFran42:
Originally Posted By Alaska511:
Don't let it get to you, P Looks good, man! What's that "V" company called again? Ha! I stopped on mine, until I see more activity in the class 3 thread :( I wanted nothing more than my KISS build to be a 12.5 Commando style, and now I am getting worried about all those forms not being processed. It would be inherently light with the short barrel. My 2 CLEO stamped lowers will be dedicated to my MK18, and Spikes LW CHF 11.5 upper, exclusively |
