Colt 6940 Question

goneglocken

Member

Joined: Mar 2001

Posts: 1851

EE: 100% (284)

SD, USA

Posted: 5/3/2024 7:02:33 PM EDT

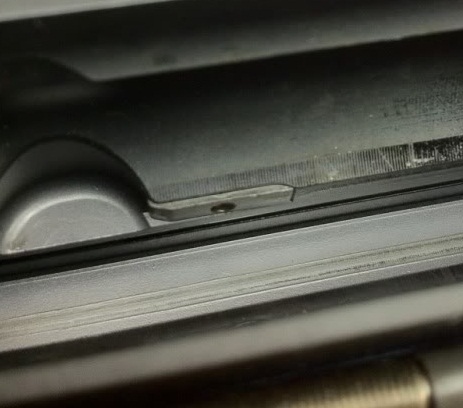

Just picked up a used Colt 6940 Monolithic Rail AR. Can anyone tell me the purpose of this screw on the upper receiver? Attached File
Never seen one before.

EnablerNo1

Joined: Aug 2003

Posts: 6810

EE: 100% (33)

MP, USA

Posted: 5/3/2024 7:12:46 PM EDT

[#1]

It retains the steel bearing plate for that cam pin, which sits just behind the cam pin pocket. It was to prevent wear/peening in that location in Colt’s piston uppers.

osprey21

Known Associate

Joined: Jan 2001

Posts: 155415

EE: 100% (297)

FL, USA

Posted: 5/3/2024 7:26:33 PM EDT

[#2]

The coming bloodshed will be squarely on Biden's hands.

Minuteman1636

Member

Joined: Jan 2013

Posts: 2829

EE: 100% (18)

MO, USA

Posted: 5/4/2024 9:53:23 AM EDT

[Last Edit: Minuteman1636][Edited] [#3]

Originally Posted By goneglocken:
Just picked up a used Colt 6940 Monolithic Rail AR. Can anyone tell me the purpose of this screw on the upper receiver? https://www.ar15.com/media/mediaFiles/6417/IMG_1440_jpeg-3204716.JPG Never seen one before.

View Quote

You mentioned that you had not seen the cam pin plate modification before. There are many examples out there without the modification. There were early production 6940-series firearms manufactured without the cam pin plate.

As mentioned previously, the design change was for the LE6940P but, for ease of production, was implemented across all 6940-series upper receivers.

goneglocken

Member

Joined: Mar 2001

Posts: 1852

EE: 100% (284)

SD, USA

Posted: 5/6/2024 10:41:42 AM EDT

[#4]

Thanks for the answers guys!
