How to tell what type of tube you have (Page 15 of 15)
|
Originally Posted By CoupleThou: Thank you! I appreciate the reply. A friend suggested it was repotted too, which does make sense. In terms of blemishes, this definitely has them - there's a soft, very very faint honeycomb blemsh (not FPN as such) over the full image, and some interesting line-shaped blems on the right side of the tube. It doesn't feel like the blemishes were post-production, but I don't know enough to say that for sure. Here's an image: https://i.ibb.co/6XW51gV/IMG20230118025657.jpg You can see the vague honeycomb pattern I was talking about in the sky. In any case, I'm not hoping for any further information, just sharing the image because tubes are cool :) Thank you again for your thoughts. Looks to perform like a very nice tube. I would just use and enjoy it. Lots of NV snobs are all about high spec tubes with data sheets. I have those tubes but really enjoy my no name bargain tubes that just work and work well for a fraction of the price. Nice tube ! |
"I said I never had much use for one, never said I didn't know how to use it"
|
Originally Posted By marod: If anyone can help identifying this tube I would greatly appreciate it I seems it s a OMNI V non gated tube CAD is 2013 week 39,maybe i m lucky and it s gated :) thank you https://i35.servimg.com/u/f35/19/99/80/58/20230116.jpg https://i35.servimg.com/u/f35/19/99/80/58/20230115.jpg https://i35.servimg.com/u/f35/19/99/80/58/20230113.jpg No contract number but my info says it is Omni V and very late production. It is milspec but missing contract number. When you have it powered put your ear up against scope and tell me if you hear a faint whine. Should be a nice tube. I don't believe it to be gated. |
"I said I never had much use for one, never said I didn't know how to use it"
Joined:
Nov 2022
Posts:
2
EE: 0% (0)
MN, USA
|
New to the NV game - I've done some digging but can't find much info. If anyone can help ID/confirm them that would be greatly appreciated! Tube 1: ITT 272069-8 DC 0917 Tube 2: MX10160C/AVS-6 ID NO. 13547-277177 EXP. NOV21 CAD 1840 CAGE 13567 No clue about the first tube besides seeing MUM14 tubes marked KM 272069-8. For the second tube I think its a OMNI7 and I know 10160C is a "high-performance" tube. Thank you in advance! Edit: found out that Tube 1 is a civilian tube. This thread is very helpful once I read through all the posts lol. |
Joined:
Jul 2022
Posts:
4
EE: 0% (0)
AZ, USA
Here's a fun one - ITT F9801A (F4796) The tube is mysteriously lablelled "Special tube" if you search for the NSN (which is 4710-01-391-7078) Other than that I can't find much. I can see there's very basic specs for F9801 on David's omni chart, but aside from that I'm not finding much else. |
|
Can anyone help me identify the type of tubes in this anvis 9 from this picture? Looking to buy these but don't know the details. Thanks https://imgur.com/a/ldy7TOq |
|
Looking for any light anybody can shed on a tube I just got (which is currently non-functional). Based on the most similar tubes in this thread, I'm thinking: maybe it's a Russian tube of some kind? Or maybe a repot or an AEO or something like it. On the side it says "091014033347" and on the pigtail it says "LTE" (in a box) and "1807". Oh, and it came out of what looks like an ITT PVS-14 housing. There is a spot on the housing where an ID plate was removed. Searching for LTE yielded some results for some ACTInBlack "PVS-14LTE"s which have an ID plate in the right spot, but other than seeing that they have European made tubes, that has been a search dead end for me. Pictures (maybe, imgur is being weird): https://imgur.com/a/kud8XXa Edit: looking like it's an NAIT repot. |
|
Need some help fellas. Tube labeled NV5050-XG7 I saw in this thread possibly an Everest tube. Is that accurate? Where can I get tool to tighten retainer ring? **I'll answer my own question: It is an EVEREST aviation tube. Tool to tighten the ring is cut down gift card or the like or buy the tool from ebay.** |
Joined:
Jul 2023
Posts:
1
EE: 0% (0)
AZ, USA
| Not sure if it's NGEOS, L3, or litton. Wanting to know what tube it is and specs if possible. https://imgur.com/a/UKL7teG |
Joined:
Oct 2023
Posts:
1
EE: 0% (0)
TX, USA
|
I can't find much on these tube. Only reference to them is from this site. Does it have a pigtail? "Very late Everest Series" Edit: I did find something. Everest tubes are Pinnacle tubes with a programmable power supply. I can't post the link I found to the pinnacle specs but if you use the WayBack Machine and punch in this link you will find them: http://www.exelisinc.com/solutions/Image-Intensifier-Tubes/Documents/Exelis-Image-Intensifier-Tube-F9800-Series.pdf I "believe" it will be somewhere in this neighborhood: TubeContract lp/mm uA/lm @830 @880 SNR Gain>Gain< FOM EBI MTF25 BLR Halo Comments F9815VG 64 2000 -- 80 25 4000080000 1600 2.5 38 36 1 Pinnacle |
|
Originally Posted By CoupleThou: Here's a fun one - ITT F9801A (F4796) https://i.ibb.co/y52Lg3Y/ITT-F9801-A.png The tube is mysteriously lablelled "Special tube" if you search for the NSN (which is 4710-01-391-7078) Other than that I can't find much. I can see there's very basic specs for F9801 on David's omni chart, but aside from that I'm not finding much else. I wonder if "special" denotes an Omni tube that fell short in some respect as such was marketed as a commercial tube? |
Joined:
Oct 2023
Posts:
1
EE: 0% (0)
WA, USA
Hello everyone, I'm new here, new to NVG's, I just built my first ever device a PVS14. I ordered a housing kit from Superior Tactical and ended up buying a Tube from someone else, they didn't have any info on it other then it's a MX-11769 in Green Phosphor. I tried to figure out what all the codes meant and got confused, I was hoping someone a little quicker than me could fill me in on the rest?
|
What the constituents want doesn't matter anymore
Joined:
Nov 2011
Posts:
16265
EE: 100% (150)
TX, USA
|
@nevernight That is an Omni-VIII tube. Res. 64 S/N 25 min Gain 25,000-110,000 |
"When you buy a jar of peanut butter do you look at the born on date? No. You buy it, stick your dick in it and go to town" aBADidea
Adapt, improvise and overcome....or fucking die trying.
Adapt, improvise and overcome....or fucking die trying.
Joined:
Oct 2023
Posts:
2
EE: 0% (0)
WA, USA
|
thank you ! So did I do ok then ? I've spent the last few months instant messaging with dozens of Chinese producers (probably just sales people) trying to get them to just sell me a tube for their own advertised prices, it seems they have all made their advertisements a year or more ago and now our Dollar doesn't carry the same weight, they all want hundreds more then what is advertised, I would have paid double what I paid for this tube just for a tube that doesn't have manual gain or auto-gain with a tube of 1400 fom. Does any of the info on the tube or packaging tell FOM or who manufactured it ? or are those three stats the only things available with what I was able to provide? |
What the constituents want doesn't matter anymore
Joined:
Nov 2011
Posts:
16266
EE: 100% (150)
TX, USA
|
Originally Posted By nevernight: thank you ! So did I do ok then ? I've spent the last few months instant messaging with dozens of Chinese producers (probably just sales people) trying to get them to just sell me a tube for their own advertised prices, it seems they have all made their advertisements a year or more ago and now our Dollar doesn't carry the same weight, they all want hundreds more then what is advertised, I would have paid double what I paid for this tube just for a tube that doesn't have manual gain or auto-gain with a tube of 1400 fom. Does any of the info on the tube or packaging tell FOM or who manufactured it ? or are those three stats the only things available with what I was able to provide? That is an ITT US tube manufactured on the 47th week of 2019. You did fine depending on the price you paid. The specs I posted above will tell you the minimum FOM, not actual, as those are the minimum the Omni-VIII contract had to meet to fulfill the requirements. 64x25=1600FOM minimum. |
"When you buy a jar of peanut butter do you look at the born on date? No. You buy it, stick your dick in it and go to town" aBADidea
Adapt, improvise and overcome....or fucking die trying.
Adapt, improvise and overcome....or fucking die trying.
Joined:
Oct 2023
Posts:
3
EE: 0% (0)
WA, USA
|
Originally Posted By wjoutlaw: That is an ITT US tube manufactured on the 47th week of 2019. You did fine depending on the price you paid. The specs I posted above will tell you the minimum FOM, not actual, as those are the minimum the Omni-VIII contract had to meet to fulfill the requirements. 64x25=1600FOM minimum. Thank you, I appreciate your help. To be honest it wasn't cheap, I paid $1700 for the tube. My original plan was to build my first device for the experience and I had the intention of using a used or slightly blemished tube or even a Chinese tube to save money and just dip my toe into this world, I had bought the housing months ago from Superior Tactical so I was kinda already locked into going this route, overall it seems I could have bought one from a vendor and had a warranty but like I said I originally wanted to piece together a unit using a Chinese housing and a used/blemished tube or Chinese tube , but dealing with some of the folks selling that gear was more trouble then it was worth, plus the prices weren't far off from where I ended up. |
Joined:
Oct 2023
Posts:
4
EE: 0% (0)
WA, USA
| The Chinese PVS14 housing was around $450 before shipping and taxes, so I decided to go with a Milspec US made housing from Superior Tactical for just a few hundred more, then same thing with the tube, I was only saving a few hundred dollars all said and done if I'd bought one of the used or blemished tubes I was researching, and all the dozens of chinese vendors I messaged with had a sliding price scale depending on the tube ie. white/green phosphor, autogated, manual gain, FOM ,anything over 1600FOM and they all wanted close to $3k after the included tax and shipping. Right before I pulled the trigger on a Chinese Tube with all the features I wanted I found this seller on Ebay, with basically a brand new unopened tube for half the price of what I was gonna pay for all the same features from a Chinese vendor. I might not have went the super cheap route I had planned but I'm very happy with the function and clarity of this tube. |
What the constituents want doesn't matter anymore
Joined:
Nov 2011
Posts:
16276
EE: 100% (150)
TX, USA
| I don't have my excel spreadsheet handy right now, but the CONTR No looks to be either Omni-IV or Omni-V |
"When you buy a jar of peanut butter do you look at the born on date? No. You buy it, stick your dick in it and go to town" aBADidea
Adapt, improvise and overcome....or fucking die trying.
Adapt, improvise and overcome....or fucking die trying.
Joined:
Dec 2023
Posts:
2
EE: 0% (0)
USA
|
Hello everyone. I'm new to the site. My friend send a tube for me. But I dont know what kind of this tube. My friends don't know either. Tube marked KM 272692-2 DC0107. Need to know about this tube I acquired... Any more info would be great. Thanks.
|
Joined:
Feb 2024
Posts:
1
EE: 0% (0)
USA
Anyone have any insight into what type of tubes these are? I'd be curious to know Omni classification/specs, whether they are filmed/filmless, or any other info you might be able to decode from the info on the box. Thanks in advance.
|
Joined:
Feb 2024
Posts:
1
EE: 0% (0)
NY, USA
Hello all, I have this tube that I pulled from an ATN 3P scope On page 12, the user Advance posted a tube that looks nearly identical to mine in the sense that it has a Silver bullet top with a black body, and has a cutout for a removable pigtail Would I be correct in assuming that my tube is also a L3 Omni 8 tube? On the output side of the Intensifier there is a little rubber cap covering where the pigtail would be installed. It also seems like L3 tubes have 9 digits and the numbering on the side is consistent with other L3 numbering I've seen in this thread   Sorry I don't know how to embed pictures(it shows them in preview) I usually lurk here only. Thanks everyone |
What the constituents want doesn't matter anymore
Joined:
Nov 2011
Posts:
16461
EE: 100% (150)
TX, USA
|
Originally Posted By mhbaker81: Anyone have any insight into what type of tubes these are? I'd be curious to know Omni classification/specs, whether they are filmed/filmless, or any other info you might be able to decode from the info on the box. Thanks in advance. https://i.imgur.com/t9Mmpdj.jpeg With those CAD dates they should be Omni-VIII. Those contract numbers are unfamiliar to me. |
"When you buy a jar of peanut butter do you look at the born on date? No. You buy it, stick your dick in it and go to town" aBADidea
Adapt, improvise and overcome....or fucking die trying.
Adapt, improvise and overcome....or fucking die trying.
Joined:
Mar 2024
Posts:
1
EE: 0% (0)
USA
Joined:
Jan 2023
Posts:
470
EE: 100% (59)
PA, USA
Joined:
Oct 2023
Posts:
5
EE: 0% (0)
WA, USA
|
I don't know if you looked back a few posts above yours but it looks like I have the same tube as yours, WJOUTLAW replied after my post with some information and it looks like our tubes are Omni-VIII tube. Res. 64 S/N 25 min Gain 25,000-110,000 They are "ITT US tube manufactured on the 47th week of 2019. Minimum FOM, not actual, as those are the minimum the Omni-VIII contract had to meet to fulfill the requirements. 64x25=1600FOM minimum." |
Joined:
Dec 2024
Posts:
1
EE: 0% (0)
RI, USA
Joined:
Jan 2024
Posts:
5
EE: 0% (0)
USA
Joined:
Feb 2025
Posts:
1
EE: 0% (0)
GRC
|
Hi! I would love some info about a tube, I know its L3 and it falls under omni 8 contracts, but I would like to know more if I could. Nsn: 5855-01-504-4590 Cage: 55311 Id: 80063-A3297310 Contract: W91CRB-11-D-0083 Cad: 2104 I've red somewhere that the 0083 contract was a "special" contract for export, but cant't find where now so not sure. Any help is appreciated Thanks! |
Joined:
May 2024
Posts:
4
EE: 0% (0)
DEU
|
Can anyone help me identify these tubes? I would really like to know their technical specifications. Unfortunately, I am unable to insert the images here.  Thanks in advance to everyone. Best regards. https://drive.google.com/file/d/1phcFvD4m5RNG4Eim4z6BO9F65o_VJILE https://drive.google.com/file/d/15MYO3Ba_K5cAUv8eUgE1KzaCQZAgXziV https://drive.google.com/file/d/1b6421VK64z7RDuezkQf3uSZIlUUr71Ev https://drive.google.com/file/d/1yNU25G5vBtp0qjUr1E59CqJH1bjJd8x9 |
Member
Joined:
Jul 2024
Posts:
22
EE: 100% (17)
VA, USA
Joined:
Mar 2026
Posts:
1
EE: 0% (0)
USA
Joined:
Mar 2026
Posts:
2
EE: 0% (0)
USA
|
Any idea what this tube is ? Bought it on the premise it was a Omni 7 equivalent Aviation tube, but it doesn't have Auto-gating, and its about 20-30% brighter with more clarity than my previous tube, an ITT 9800P, Omni 5 tube, ( ITT states it is 1600 FOM, MAX). https://ibb.co/7JhVQn1d If you can't read the letters/numbers, they are ITT 273296-34, S/N: 321342 DC 0732. I was told the -34 designates it as Auto-gated, Thin Filmed, but it definitely doesn't have AG and someone suggested it might be an MX10160C Fallout tube, or an MX10160A tube too. No idea what it is, Need to know, so I can put a price on it, when I upgrade to a tube that actually has Auto-gating. |
Joined:
Mar 2026
Posts:
3
EE: 0% (0)
USA
Joined:
Apr 2025
Posts:
726
EE: 100% (1)
USA
|
Originally Posted By westernhaikus1: MX10160 WG - can anybody tell me the rough performance level of this? Serial - 10019X697 (can't make out what the sixth digit is in the picture I was sent) Cage - 55311 Contract No. - N00164-04-D-8530 Warranty Exp - MAR09 Can't quite make out the CAD either Did you ever find your answer? MX10160/UV Cage 55311 Contract N00164-04-D-8530 CAD 09/14 War Exp Jun 11 EDIT Come to find out, this tube came out of a PVS15 and is supposed to be an early filmless tube. Compared to another contract tube I've got, behind the same exact optics, this PVS15 tube is a lot more detailed. |
Joined:
Jan 2023
Posts:
1
EE: 0% (0)
UKR
|

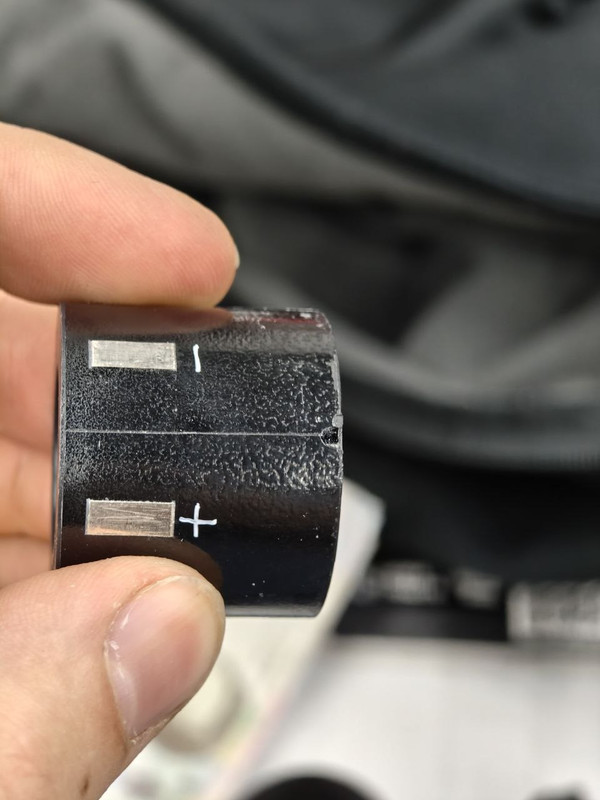

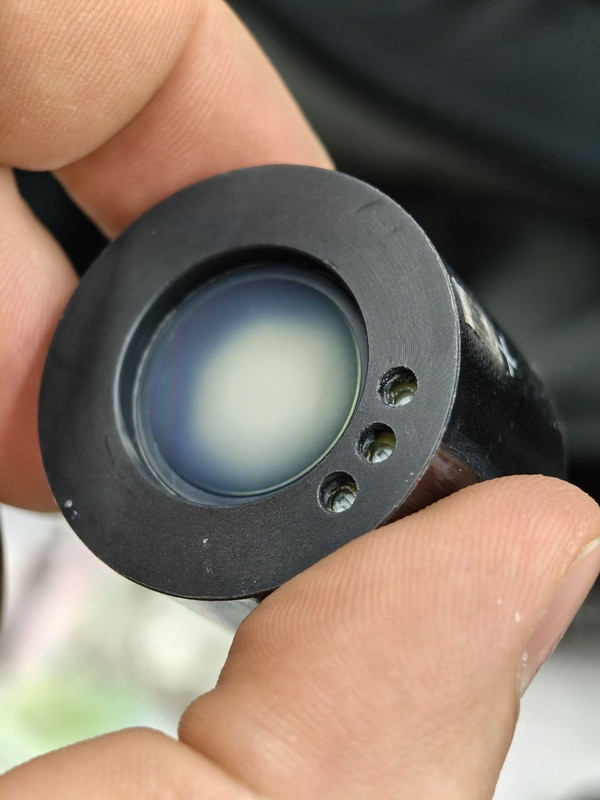

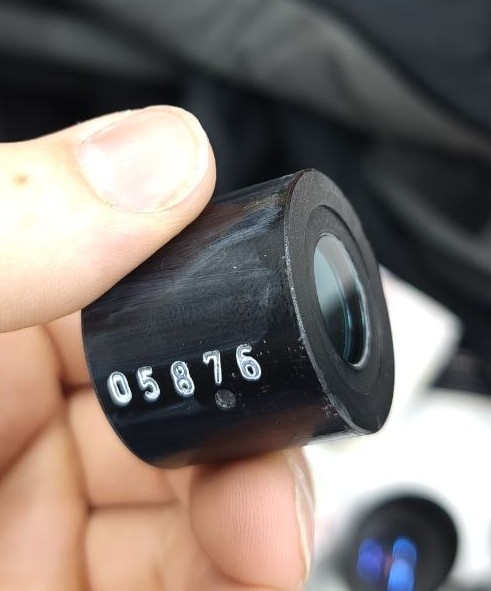

Hey guys, I'm looking for some help identifying an 18mm image intensifier tube. It's a 10160 style format (flat contacts, no manual gain pigtail). There are absolutely no manufacturer stickers or labels on the body. The only marking is a serial number 05876. Has anyone seen this specific housing style or serial number format before? Could it be a Harder Digital?https://i.postimg.cc/2yCn17v9/photo-2026-08-09-20-19-45.jpg https://i.postimg.cc/4NLp3t3c/photo-2026-08-09-20-19-48.jpg https://i.postimg.cc/c49fJYJ2/photo-2026-08-09-20-19-36.jpg |
